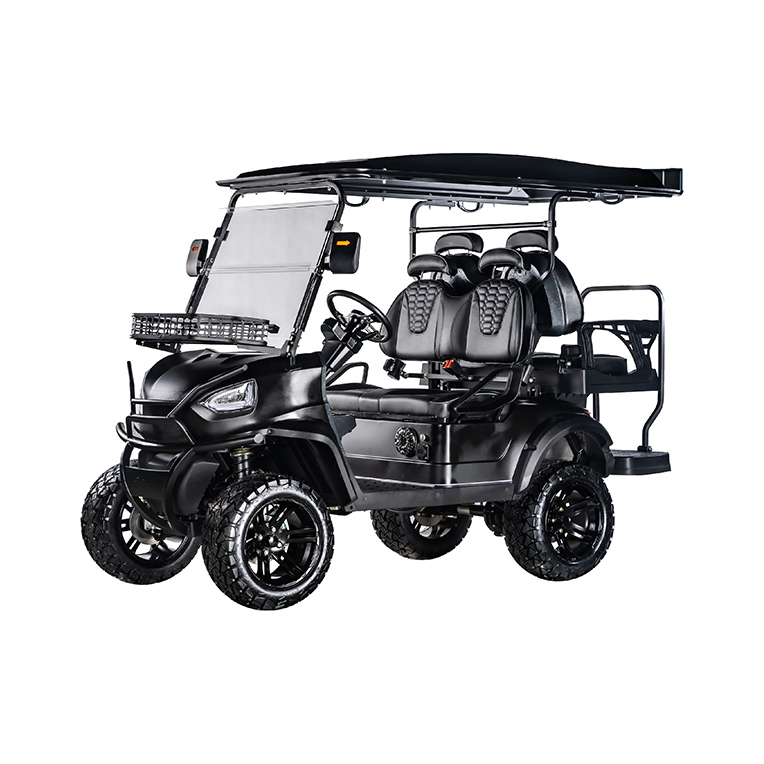

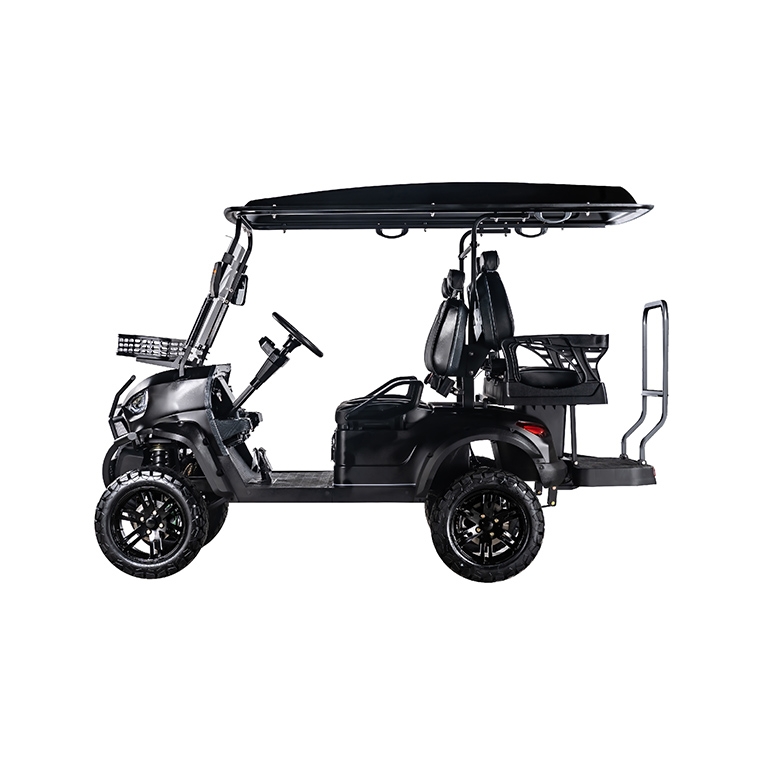

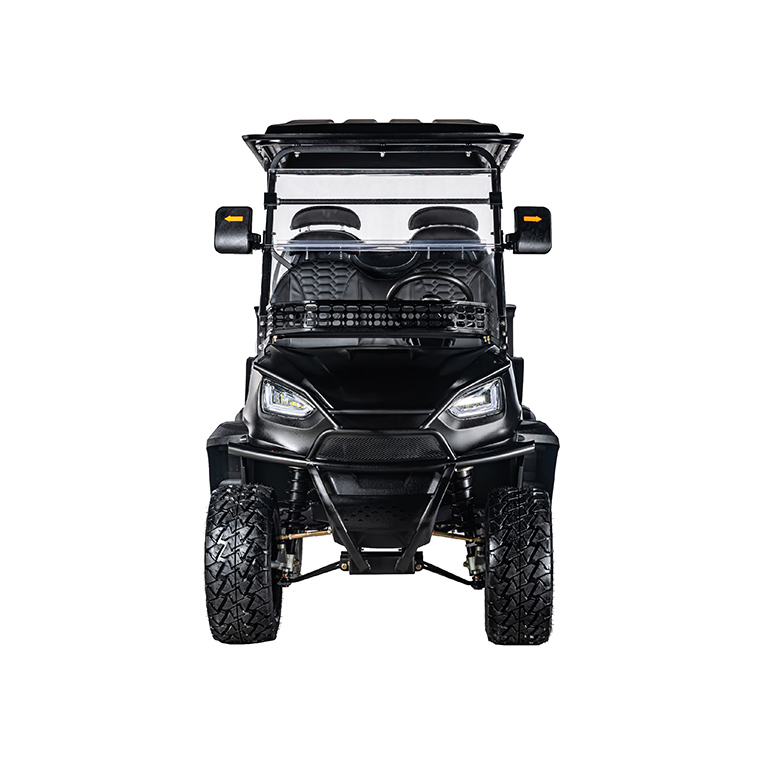

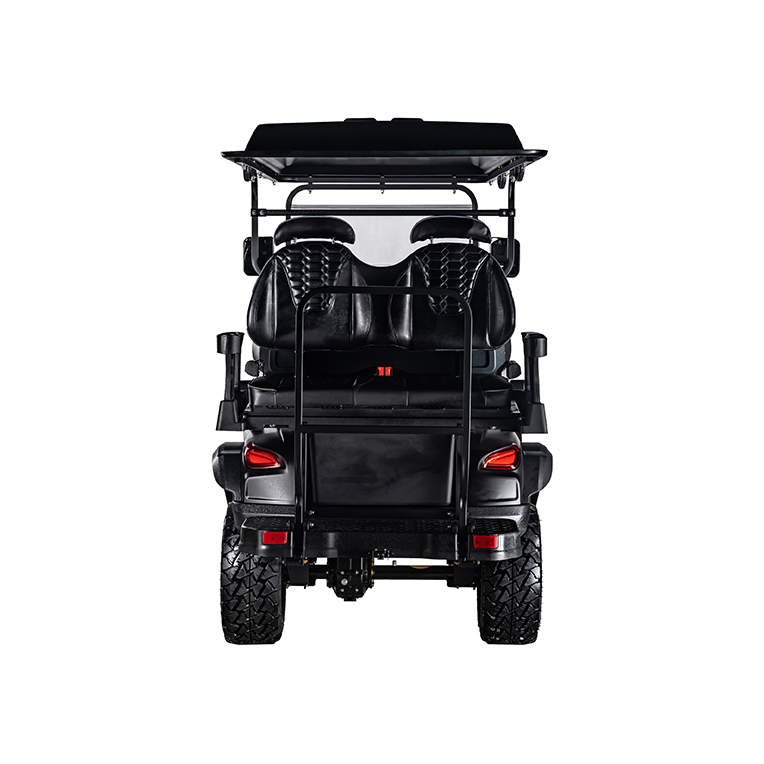

MODEL B

Matt black
Models	WH2020ASZ	WH2040ASZ
Contour dimension(mm) Passenger capacity Maximum speed(km/h) Driving range(km) Maximum grade(full load) Maximum capacity in slope(unloaded) Wheel base(mm) Wheel track(mm) Minimum ground clearance(mm) Braking distance (m) Minimum turning radius (m)	2945×1340×2060 2+2 25 >60 20% 20% 1700 Front 880 / rear 990 200 <6 <3.5	3695×1340×2060 4+2 25 >60 15% 20% 2450 Front 880 / rear 990 200 <6 <4.5
steering system	Bidirectional rack and pinion steering system
Braking system	Hydraulic brake
Front suspension system	macpherson independent suspension
Parking	EMB
Rear suspension system	Integral rear bridge, single leaf spring+cylinder, hydraulic damping
